WS-630 Model Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Cutting

  • WS-630 Model Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Cutting
  • WS-630 Model Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Cutting
  • WS-630 Model Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Cutting
  • WS-630 Model Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Cutting
  • WS-630 Model Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Cutting
  • WS-630 Model Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Cutting
Certificazione ISO
Quantità di ordine minimo 1

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Modello n. WS-630 Forza di taglio massima 6300kN
Lunghezza lama 1400mm Tasso di produzione 8-12T/H
Energia 110KW Modello di cilindro idraulico di taglio YG400/280
Quantità di cilindri idraulici di taglio 2 Taglio della spinta del cilindro idraulico 3150KNX2
Modello con cilindro idraulico a spinta YG280/200 Spingere la spinta del cilindro idraulico 1350KN
Pressione del sistema idraulico <22 MPa Altezza di taglio 420 mm
Tempi di tosatura 2-4 volte/min Modalità operativa Caricamento meccanico dei materiali, controllo tramite pulsanti e Plc
Dimensione del serbatoio dell'olio 3000X2000X800 (4500L)
Evidenziare

WS-630 Model Gantry Shear

,

6300kn Max Cutting Force Hydraulic Metal Shear

,

1400mm Blade Length Scrap Metal Cutting Machine
Lasciate un messaggio
Descrizione di prodotto

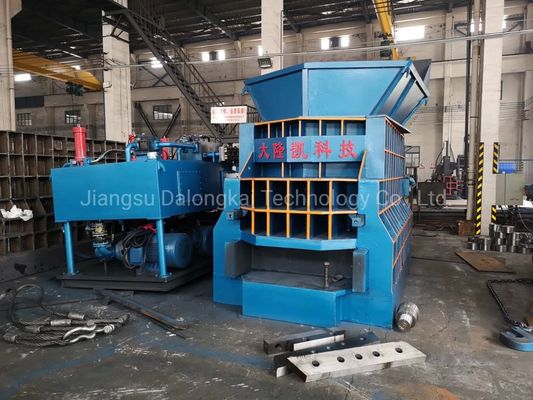

WS-630 Hydraulic Automatic Steel Cutting Machine
About Our Company
Jiangsu Dalongkai Technology Co., Ltd. specializes in manufacturing scrap metal recycling processing and hydraulic equipment. With strong technology, advanced manufacturing lines, and comprehensive testing devices, we produce various hydraulic scrap balers, scrap shears, container shears, hydraulic metal balers, garbage compactors, briquetting presses, sheet metal shears, and other non-standard equipment. Our products are exported to Russia, India, South Africa, Southeast Asia, and other regions.
Our machines are primarily designed for scrapyards, steel mills, scrap recycling processing industries, and nonferrous & ferrous smelting industries.
WS-630 Model Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Cutting 0

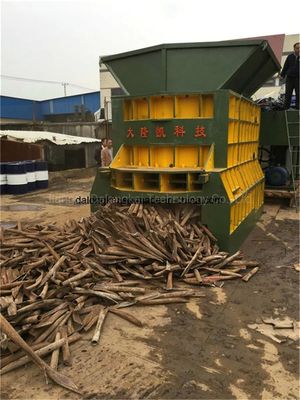

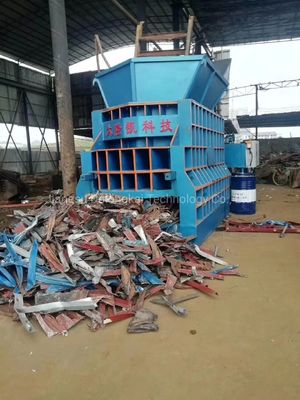

Finished Products
WS-630 Model Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Cutting 1

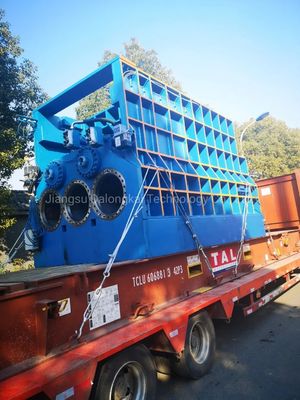

Package
WS-630 Model Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Cutting 2
WS-630 Horizontal Metal Container Shear
Applications
The scrap shear is designed for economical scrap processing. This machine features easy operation and flexible transportation with a roll on/roll off system. Various models are available. HPM series of horizontal balers work with manual belting.
Key Features
  • Horizontal structure: feeding can be manual or automatic with conveyor
  • PLC control and push-button operation for safe and reliable performance
  • High output capacity
WS-630 Container Shear Technical Parameters
No. Parameter Name And Content Remark
1 Shearing Hydro-Cylinder
Model: YG400/280
Quantity: 2
Nominal Thrust: 3150KNX2
2 Push Hydro-Cylinder
Model: YG280/200
Quantity: 1
Nominal Thrust: 1350KN
3 Hydraulic System Working Pressure <22Mpa
4 Cutting Length/Height 1400/420mm
5 Shearing Times 2-4 Times/Min (Empty load Load operation)
6 Operating Mode Mechanical Loading Materials, Push-Button & Plc Control (With The Remote Control)
7 Power Specification 415V/3P 50Hz
8 Main Machine Power 110Kw (not including system of cooling, heating and filtering)
9 Oil Tank Size 3000X2000X800 (4500L)
10 Cooling Mode Forced air cooling 52P 52P

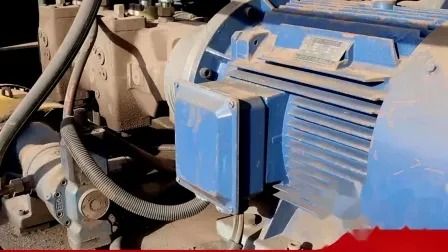

10 Motor
Model: Y2-250M-4
Quantity: 2
Rated Speed: 1470 Rpm
Rated Power: 55 Kw
11 Pump
Model: A4V250
Quantity: 2
Nominal Displacement: 250ml/r
Rated Pressure: 31.5Mpa
Model Max Cutting Force(KN) Blade Length(mm) Shear Height(mm) Production Rate(t/h) Power(KW)
WS-630 6300 1400/1600 300/420 8-15 110
WS-800 8000 1600 420/500 12-18 220
WS-1000 10000 1600/2100 420/500 15-25 360
