315 Ton Max Shear Force Gantry Plate Shear with 800mm Blade Length and 30*700mm Max Cutting Specifications

  • 315 Ton Max Shear Force Gantry Plate Shear with 800mm Blade Length and 30*700mm Max Cutting Specifications
  • 315 Ton Max Shear Force Gantry Plate Shear with 800mm Blade Length and 30*700mm Max Cutting Specifications
  • 315 Ton Max Shear Force Gantry Plate Shear with 800mm Blade Length and 30*700mm Max Cutting Specifications
  • 315 Ton Max Shear Force Gantry Plate Shear with 800mm Blade Length and 30*700mm Max Cutting Specifications
  • 315 Ton Max Shear Force Gantry Plate Shear with 800mm Blade Length and 30*700mm Max Cutting Specifications
  • 315 Ton Max Shear Force Gantry Plate Shear with 800mm Blade Length and 30*700mm Max Cutting Specifications
Certificazione ISO
Quantità di ordine minimo 1
Prezzo 14300

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Modello n. Q15A-3150 Forza di taglio massima 315 (tonnellata)
Lunghezza lama 800(mm) Specifiche di taglio massime 30*700 (millimetro)
Frequenza di taglio 4-7(volte/min) Potenza del motore 45 ((KW)
Forza nominale 120 tonnellate ~ 315 tonnellate Tipo guidato Idraulico
Energia 15KW~44kW Voltaggio 21.5Mpa, personalizzato
Grado automatico Semiautomatico Capacità produttiva 5 set/mese
Materiale da taglio massimo 30*700 (millimetro) Forza di taglio 315 (tonnellata)
Motore 45 ((KW)
Evidenziare

315 Ton Max Shear Force Gantry Shear

,

800mm Blade Length Gantry Plate Shear

,

30*700mm Max Cutting Specifications Hydraulic Gantry Shear
Lasciate un messaggio
Descrizione di prodotto
Gantry Plate Shear Machine
This hydraulic gantry plate shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces traditional flame cutting methods while significantly reducing operational costs.
Product Information
Model Number Q15-1200~Q15-3150
Certification SGS
Place of Origin Jiangsu P.R. China
Technical Specifications
Product Name Gantry Plate Shear
Condition New
Application Scrap Metal Processing
Nominal Force 120Tons ~ 315Tons
Driven Type Hydraulic
Power 15KW ~ 44kW
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Semi-Automatic
Detailed Model Specifications
Model Shearing Force (ton) Blade Length (mm) Max. Cutting Material (mm) Shearing Frequency (times/min) Motor (KW)
Q15A-1200 120 600 18×500 4-7 15
Q15A-1600 160 600 20×500 4-7 18.5
Q15A-2000I 200 600/800 25×500 4-7 22
Q15A-2500I 250 600 30×500 4-7 22
Q15A-2500II 250 800 30×700 4-7 2×15
Q15A-3150 315 800 30×700 4-7 45
Q15A-4000 400 800 35×700 4-7 2×22
Q15A-5000 500 900 40×800 4-7 2×45
Q15B-1600 160 1200 16/12×1000 4-7 18.5
Q15B-2000 200 1200 18/16×1000 4-7 22
Q15B-2500I 250 1200/1600 25/20×1000 4-7 2×18.5
Q15B-3150 315 1200 30/25×1000 4-7 2×18.5

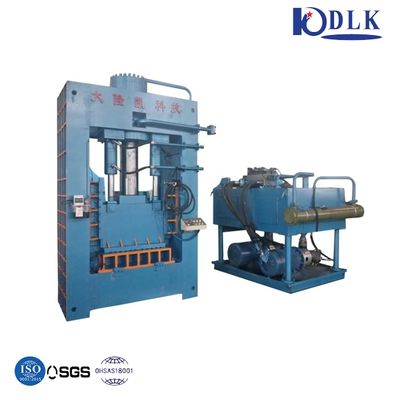

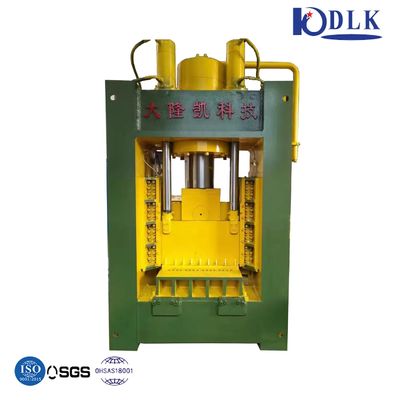

Product Images
315 Ton Max Shear Force Gantry Plate Shear with 800mm Blade Length and 30*700mm Max Cutting Specifications 0 315 Ton Max Shear Force Gantry Plate Shear with 800mm Blade Length and 30*700mm Max Cutting Specifications 1

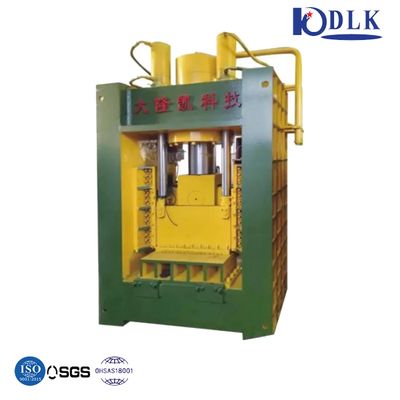

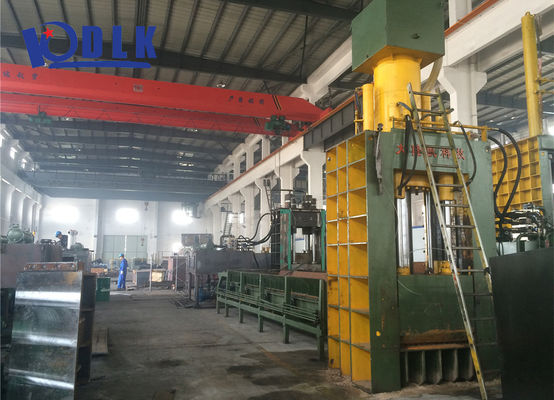

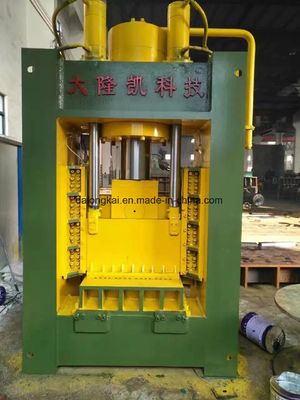

Factory & Certification
315 Ton Max Shear Force Gantry Plate Shear with 800mm Blade Length and 30*700mm Max Cutting Specifications 2 315 Ton Max Shear Force Gantry Plate Shear with 800mm Blade Length and 30*700mm Max Cutting Specifications 3 315 Ton Max Shear Force Gantry Plate Shear with 800mm Blade Length and 30*700mm Max Cutting Specifications 4
Commercial Terms
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 10 sets/month
Delivery Time As per customer requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by manufacturing defects. For issues caused by improper operation, we also provide spare parts at cost. You can contact us directly for any technical support.
Q2: Can I visit your factory before placing an order?
Yes, we welcome visits to our factory. Our address: 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China. We are conveniently located near Shanghai Pudong Airport and can arrange airport pickup. Hotel booking services are also available.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years. Export accounts for 50-60% of our business.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable technical suggestions and competitive pricing. Our credentials include third-party assessments, national patents, CE certification, and ISO standards for all equipment. We welcome factory inspections anytime and specialize in hydraulic balers and hydraulic shears.
Q5: Is your price competitive?
We supply only high-quality machines and offer the best factory pricing based on superior products and comprehensive service support.
