Q15A-3150 Scrap Plate Shear Machine with 315 Ton Max Shear Force 800mm Blade Length and 30*700mm Max Cutting Specifications
Contattimi gratis campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Modello n. | Q15A-3150 | Forza di taglio massima | 315 (tonnellata) |
|---|---|---|---|
| Lunghezza lama | 800(mm) | Specifiche massime di taglio | 30*700 (millimetro) |
| Frequenza di taglio | 4-7(volte/min) | Potenza del motore | 45 ((KW) |
| Forza nominale | 120 tonnellate ~ 315 tonnellate | Tipo guidato | Idraulico |
| Voltaggio | 21.5Mpa, personalizzato | Grado automatico | Semiautomatico |
| Capacità produttiva | 10 set/mese | Forza di taglio | 315 (tonnellata) |
| Materiale di taglio massimo | 30*700 (millimetro) | Motore | 45 ((KW) |
| Energia | 15KW~44kW | ||
| Evidenziare | 315 Ton Max Shear Force Gantry Shear,800mm Blade Length Scrap Plate Shear Machine,30*700mm Max Cutting Specifications Hydraulic Shear |
||
Descrizione di prodotto

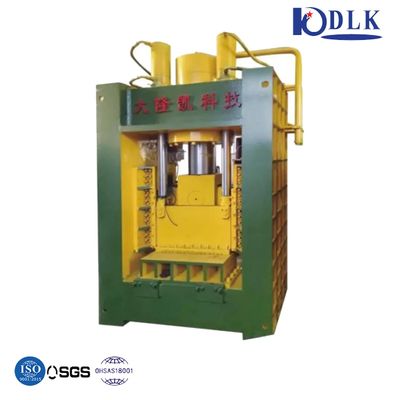

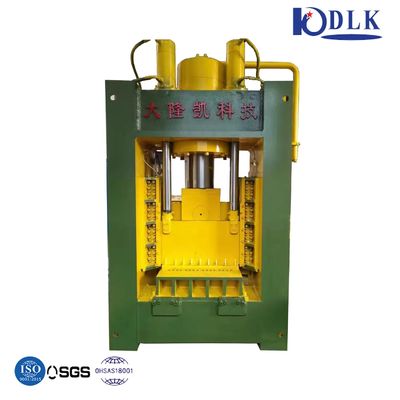

Q15A-3150 Scrap Plate Shear Machine
This hydraulic gantry plate shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces flame cutting processes, significantly reducing operational costs while improving efficiency.
Technical Specifications
General Information
| Model Number | Q15-1200~Q15-3150 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Product Attributes
| Product Name | Gantry Plate Shear |
| Condition | New |
| Application | Scrap Metal Processing |
| Nominal Force | 120Tons ~ 315Tons |
| Driven Type | Hydraulic |
| Power | 15KW ~ 44kW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Model Specifications
| Model | Shearing Force (ton) | Blade Length (mm) | Max. Cutting Material (mm) | Shearing Frequency (times/min) | Motor (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18×500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20×500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25×500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30×500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30×700 | 4-7 | 2×15 |
| Q15A-3150 | 315 | 800 | 30×700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35×700 | 4-7 | 2×22 |
| Q15A-5000 | 500 | 900 | 40×800 | 4-7 | 2×45 |
| Q15B-1600 | 160 | 1200 | 16/12×1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16×1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20×1000 | 4-7 | 2×18.5 |
| Q15B-3150 | 315 | 1200 | 30/25×1000 | 4-7 | 2×18.5 |

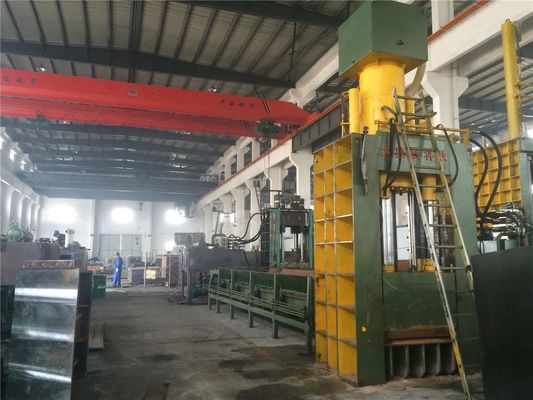

Product Gallery
Our Team
Certifications
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts for free if problems are caused by manufacturing defects. For user-caused issues, we provide spare parts at cost. Direct phone support is available for any problems.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China, near Shanghai Pudong Airport. We provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with export proportion of 50-60%.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. Our credentials include third-party assessment, national patents, and CE, ISO certifications for all equipment. We welcome factory inspections and specialize in hydraulic balers and shears.
Q5: Is your price competitive?
We supply only high-quality machines and provide the best factory pricing based on superior products and comprehensive service support.
