PSX-750 Hydraulic Scrap Iron Shredder with 750KW Power and Hard Alloy Cutter for Efficient Metal Recycling
Dettagli
| Modello n. | PSX-750 | Energia | 750(1000)(Kw) |
|---|---|---|---|
| Motore | 15-20(T/H) | Tipo | Crusher di martello |
| Guidare | Idraulico | Grado di frantumazione | Macchina per la molatura fine |
| Stile schiacciante | Macinazione e Impatto | Principio | Rottura a rulli |
| Materiale della taglierina | Lega dura | Resistenza alla compressione | > 300 MPA |
| Forza nominale | 400 Tonnellate ~4500 Tonnellate | Voltaggio | 21.5Mpa, personalizzato |
| Grado automatico | Automatico | Larghezza di apertura dell'alimentazione | 2200 mm |
| Capacità | 15-20(T/H) | ||
| Evidenziare | 750KW Power Hydraulic Scrap Iron Shredder,Hydraulic Drive Scrap Metal Shear,Hard Alloy Cutter Hammer Crusher |
||
Descrizione di prodotto

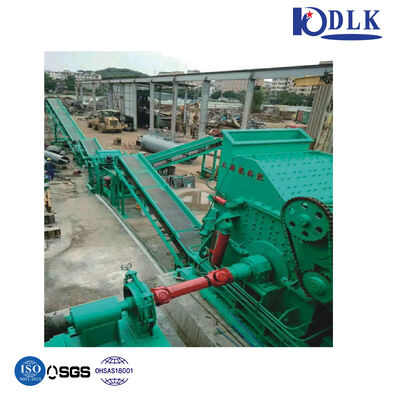

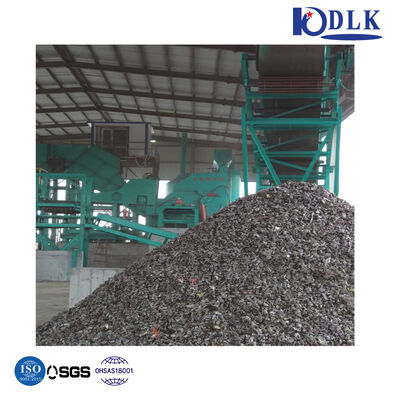

PSX-750 Hydraulic Scrap Iron Shredder Line
The PSX Scrap Steel Shredder Line is engineered to process various light and thin materials including discarded automobiles, tin plate, household appliances, bicycles, empty cans, and similar scrap metals. This advanced system transforms materials into pure furnace charge for steel making operations.
Key Benefits
Through comprehensive shredding and compression processes, the system effectively removes impurities and increases material density, resulting in reduced transportation and smelting costs while providing superior furnace charge quality for steel plants.
Material Processing Capabilities
- Complete or flattened automobile bodies (excluding tires, gasoline cylinders, tanks, engines, and gear boxes)
- Various tinplate categories
- Household electrical appliances (excluding motors, compressors, and axles)
- Bicycle frames and similar structural materials
- Empty tanks and containers (excluding liquids, oil paint, etc.)
- Other materials suitable for industrial shredding operations
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | PSX Scrap Steel Shredder Line |
| Condition | New |
| Application | Scrap Metal Processing |
| Nominal Force | 400Tons - 4500Tons |
| Driven Type | Hydraulic |
| Power Range | 400KW - 4500KW |
| Operating Pressure | 21.5Mpa, Customizable |
| Automation Grade | Automatic |
Performance Specifications
| Model | Feed Opening Width (mm) | Power (KW/HP) | Capacity (t/h) |
|---|---|---|---|
| PSX-400/450 | 1200 | 400KW/450KW/535HP | 6-10 |
| PSX-750 | 2200 | 750(1000) | 15-20 |
| PSX-900 | 2200 | 900(1200) | 20-30 |
| PSX-1200 | 2500 | 1200(1600) | 25-40 |
| PSX-1500 | 2500 | 1500(2000) | 40-50 |
| PSX-2000 | 2500 | 2000 | 50-60 |
| PSX-2250 | 2500 | 2250(3000) | 60-80 |
| PSX-3000 | 2500 | 3000(4000) | 80-100 |
| PSX-4500 | 2500 | 4500(6000) | 100-160 |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Pricing | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Capacity | 6 sets per year |
| Delivery Time | Customized to requirements |
| Packaging | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Product Images
Recommended Products
Factory & Certification
Frequently Asked Questions
How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free of charge for issues caused by manufacturing defects. For user-caused problems, spare parts are available at cost. Direct telephone support is always available.
Can I visit your factory before ordering?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China. We are conveniently located near Shanghai Pudong Airport and provide airport pickup and hotel booking services for visiting clients.
Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years. Export business constitutes 50-60% of our operations.
How can I trust your company?
With 20 years of professional design experience, we provide suitable technical suggestions and competitive pricing. Our credentials include third-party assessments, national patents, and CE and ISO certifications for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and hydraulic shears.
Is your price competitive?
We supply only high-quality machinery and provide the best factory pricing based on superior products and comprehensive service support.
