PSX-6868 Hydraulic Drive Scrap Steel Shredder with Hard Alloy Cutter for Fine Grinding Metal Recycling

Quantità di ordine minimo	1
Prezzo	285800

Dettagli

Modello n.	PSX-6868	Motore	10-15(T/H)
Tipo	Crusher di martello	Guidare	Idraulico
Grado di frantumazione	Macchina per la molatura fine	Stile schiacciante	Macinazione e Impatto
Principio	Rottura a rulli	Materiale della taglierina	Lega dura
Resistenza alla compressione	> 300 MPA	Forza nominale	400 Tonnellate ~5500 Tonnellate
Energia	400KW~5500kW	Voltaggio	21.5MPA
Grado automatico	Automatico	Larghezza ingresso alimentazione	1750mm
Potenza principale	600KW
Evidenziare	Hydraulic Drive Scrap Steel Shredder , Hard Alloy Cutter Hammer Crusher , Fine Grinding Metal Shredder

Lasciate un messaggio

Descrizione di prodotto

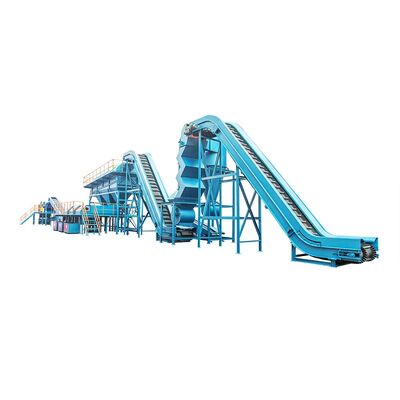

PSX-6868 Scrap Steel Shredder Line

Applications & Benefits

The PSX Scrap Steel Shredder Line is engineered to process various light and thin materials including discarded automobiles, tin plate, household appliances, bicycles, and empty cans. This advanced system transforms scrap materials into pure furnace charge for steel production.

Through comprehensive shredding and compression processes, the system effectively removes impurities and increases material density. This results in significantly reduced transportation and smelting costs while providing steel plants with high-quality furnace charge.

Compatible Materials

Complete or flattened automobile bodies (excluding tires, gasoline cylinders, tanks, engines, and gear boxes)
Various tinplate categories
Household electrical appliances (excluding motors, compressors, and axles)
Bicycle frames and similar structural materials
Empty tanks and containers (excluding liquids, oil paint, etc.)
Other materials suitable for industrial shredding processes

Product Specifications

Product Name	PSX Scrap Steel Shredder Line
Condition	New
Application	Scrap metal processing
Nominal Force	400 Tons - 5500 Tons
Driven Type	Hydraulic
Power	400KW - 5500kW
Voltage	21.5Mpa, Customized
Color	Customized
Automatic Grade	Automatic

Technical Specifications

Model	Feed Inlet Width (mm)	Main Power (KW)	Capacity (t/h)
PSX-5070	1750	450	8-12
PSX-6868	1750	600	10-15
PSX-6886	2200	900	20-25
PSX-68104	2200	1500	30-40
PSX-80104	2600	2240	40-60
PSX-88104	2600	3000	60-100
PSX-98104	2600	4500	100-200
PSX-98114	2900	5500	150-300

Commercial Terms

Minimum Order Quantity	1 Set
Price	Negotiable
Payment Terms	30% T/T In Advance
Supply Ability	6 sets /year
Delivery Time	As per customer requirements
Packaging Details	Seaworthy packing
After-sales Service	Engineers available for overseas service
