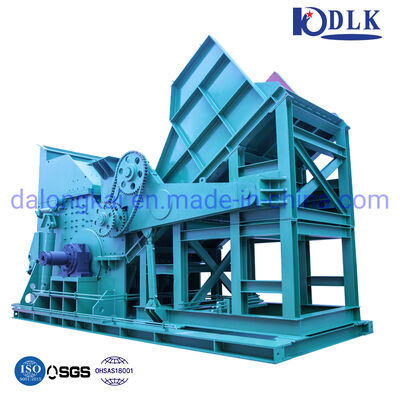

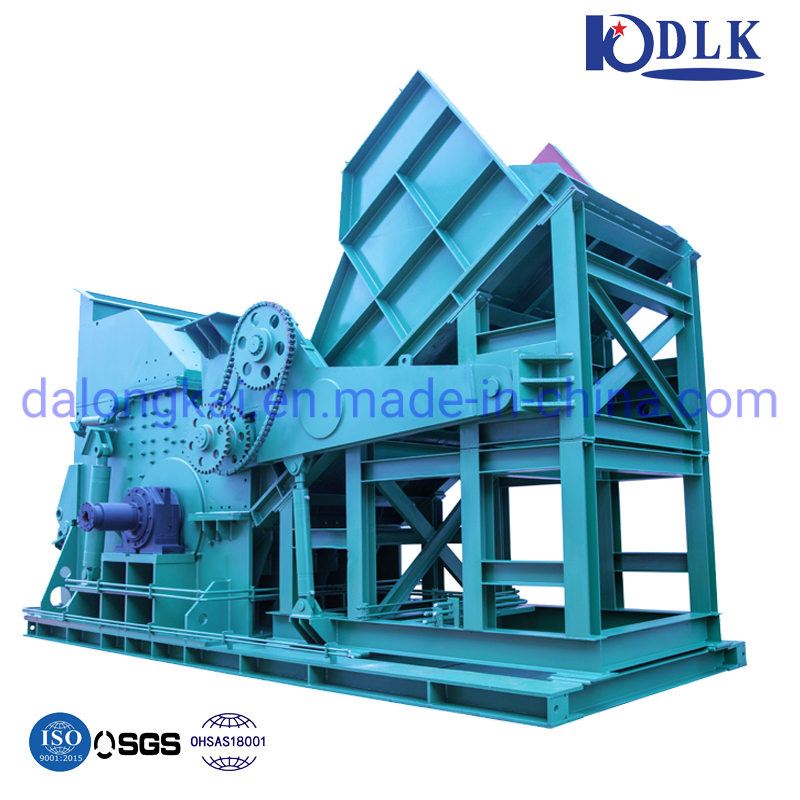

PSX Model Hydraulic Metal Shredder for Waste Copper Recycling with Hydraulic Drive
Dettagli
| Modello n. | PSX | Specifiche del mandrino | 1200 mm, 1750 mm, 2000 mm, 2200 mm, 2500 mm |
|---|---|---|---|
| Larghezza ingresso alimentazione | 1750 mm, 2200 mm, 2600 mm, 2900 mm | Potenza del motore principale | 450kw, 600kw, 900kw, 1500kw, 2240kw, 3000kw, 4500kw, 5500kw |
| Capacità | 8-12 tonnellate/ora, 10-15 tonnellate/ora, 20-25 tonnellate/ora, 30-40 tonnellate/ora, 40-60 tonnell | Capacità produttiva | 10 set al mese |
| Materiale del corpo | Rottami di carrozzerie, latta, vecchi elettrodomestici, biciclette, bidoni vuoti | Capacità di elaborazione | Carrozzeria intera o appiattita, classe stagno, elettrodomestici, carrozzeria auto, lattine vuote |
| Servizio post-vendita | Ingegneri disponibili per il servizio all'estero | Pacchetto di trasporto | Pacchetto idoneo alla navigazione (pacchetto film, pacchetto nudo o S) |
| Periodo di garanzia | 1 anno | Pezzi di ricambio | 1 set di pezzi di ricambio, cassetta degli attrezzi, libretto operativo |
| Risposta del servizio | Servizio globale garantito in 3 giorni | Tempi di consegna | 30 giorni |
| Disponibilità di personalizzazione | SÌ | ||
| Evidenziare | PSX Model Hydraulic Metal Shredder,Waste Copper Recycling Scrap Metal Shredder,Hydraulic Drive Metal Recycling Machine |
||
Descrizione di prodotto
Waste Copper Recycling Hydraulic Metal Shredder Machine

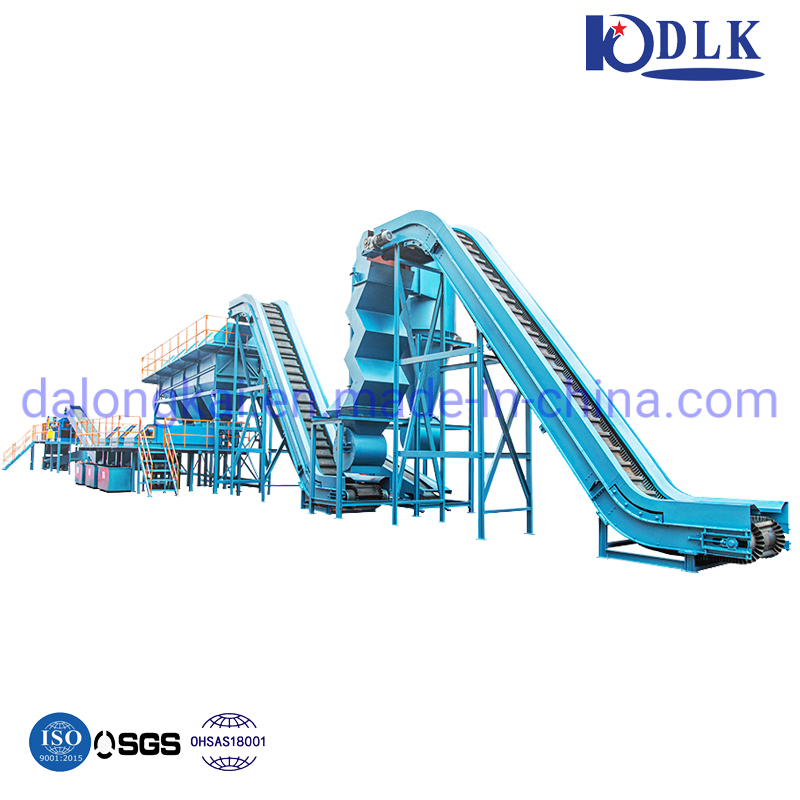

The PSX Scrap Steel Shredder Line is engineered to process various metal waste materials including scrap car bodies, tin plate, old household appliances, bicycles, and empty cans. This advanced machinery transforms waste into superior steel raw materials through continuous grinding, removing coatings and increasing bulk density. The process prevents explosions when materials are fed into electric furnaces and enhances dissolution probability, meeting steel mill requirements for "fine material feeding."
Compatible Materials
- Complete or flattened vehicle bodies (excluding tires, gasoline, cylinders, engines, and gearboxes)
- Tin-based materials
- Household appliances (excluding motors, compressors, and axles)
- Car bodies and similar structural materials
- Empty cans (after removal of fluids, paint, etc.)
- Other materials suitable for crushing operations
Assembly & Shipping
Service & Support
- Comprehensive one-year warranty with lifelong maintenance support
- Complete spare parts package including tool box and operation manual
- Direct technical support via telephone
- Global service response guaranteed within 3 days
- Optional local service personnel available (additional charges apply)
Technical Specifications
| Model | Spindle Specification (mm) | Width of Feed Inlet (mm) | Main Motor Power (kw) | Capacity (tons/hour) |
|---|---|---|---|---|
| PSX-5070 (600HP) | 1200 | 1750 | 450 | 8-12 |
| PSX-6868 (800HP) | 1750 | 1750 | 600 | 10-15 |
| PSX-6886 (1200HP) | 1750 | 2200 | 900 | 20-25 |
| PSX-68104 (2000HP) | 1750 | 2200 | 1500 | 30-40 |
| PSX-80104 (3000HP) | 2000 | 2600 | 2240 | 40-60 |
| PSX-88104 (4000HP) | 2200 | 2600 | 3000 | 60-100 |
| PSX-98104 (6000HP) | 2500 | 2600 | 4500 | 100-200 |
| PSX-98114 (8000HP) | 2500 | 2900 | 5500 | 150-300 |
Certifications

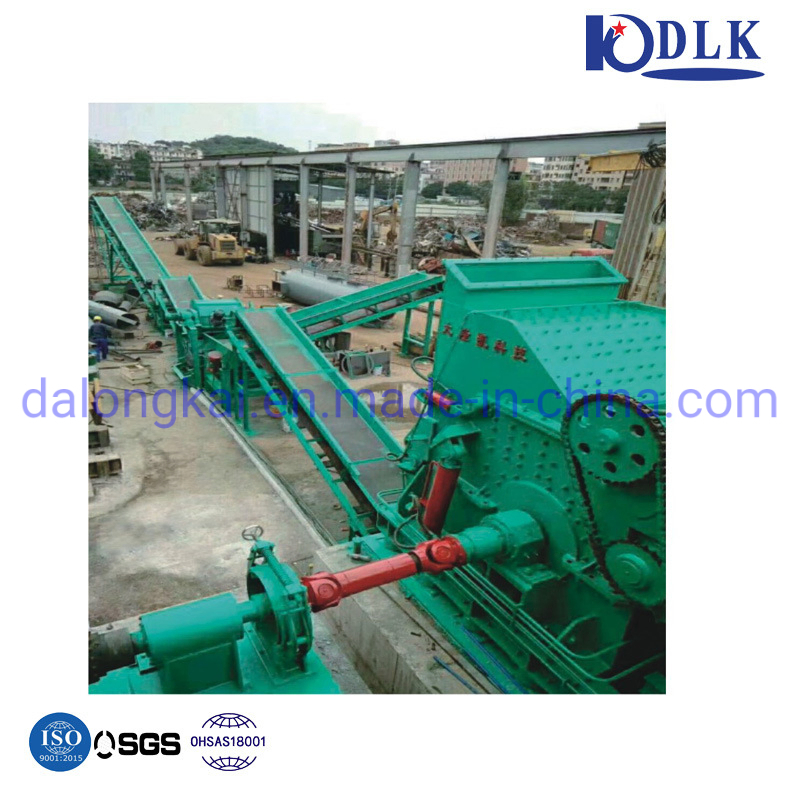

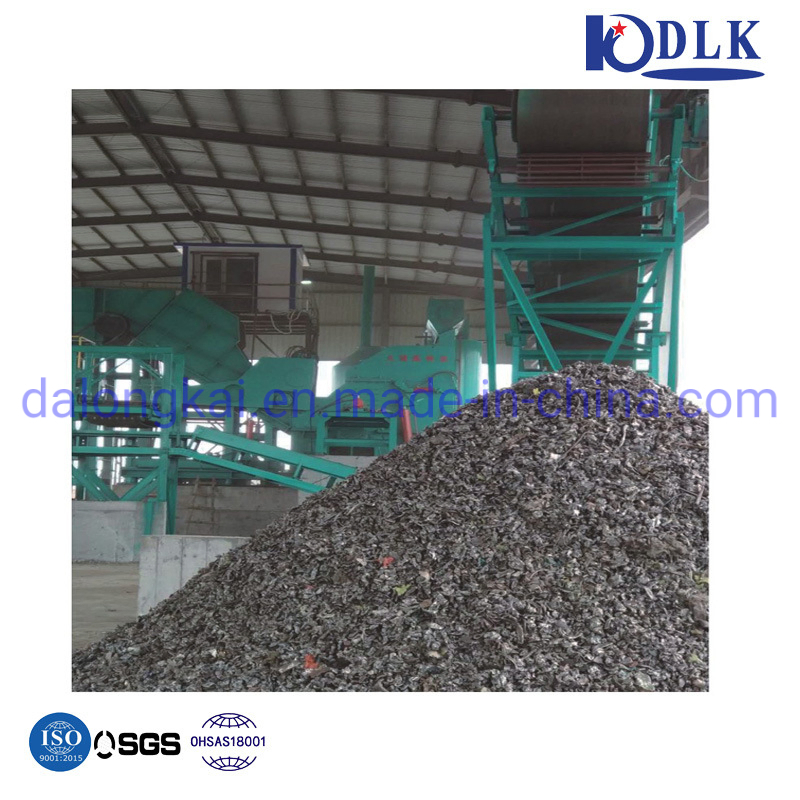

Customer Installations
Frequently Asked Questions
Are you a manufacturer, trading company or a third party?
We are a manufacturer, and we have built up our company since 2016.
What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set. As our product is machinery equipment, it's difficult to send samples. However, we can send you catalogs and warmly welcome you to visit our company.
What is the delivery time of your machine?
In general, the delivery time is about 30 days. Customized machines will be delivered according to negotiations with our clients.
About the after-sale service, how can you solve problems for overseas customers in time?
The warranty period is normally 12 months. During this period, we will arrange international express immediately to ensure replacement parts are delivered as soon as possible.
