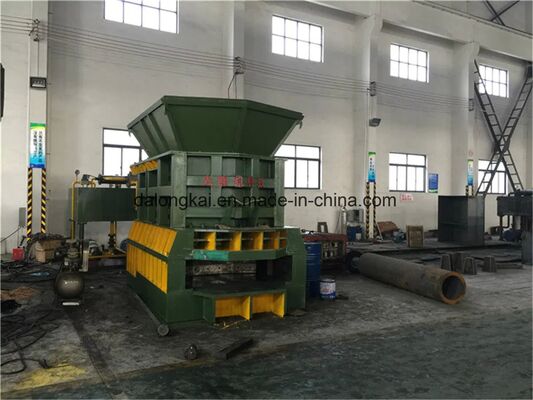

WS-315 Horizontal Scrap Metal Shear Machine with 3150kn Max Cutting Force, 800mm Blade Length, and 3-5t/H Production Rate

  • WS-315 Horizontal Scrap Metal Shear Machine with 3150kn Max Cutting Force, 800mm Blade Length, and 3-5t/H Production Rate
  • WS-315 Horizontal Scrap Metal Shear Machine with 3150kn Max Cutting Force, 800mm Blade Length, and 3-5t/H Production Rate
Quantità di ordine minimo 1
Prezzo 54000
Dettagli
Modello n. WS-315 Forza di taglio massima 3150kN
Lunghezza lama 800 mm Tasso di produzione 3-5t/ora
Energia 60KW Forza nominale 400 tonnellate
Tipo guidato Idraulico Lunghezza massima da tagliare 1600 mm
Voltaggio 21.5MPA Grado automatico Automatico
Altezza del taglio 300/420 mm Forza di taglio massima (WS-400) 4000KN
Lunghezza lama (WS-400) 1000 mm Tasso di produzione (WS-400) 4-7T/H
Potenza (WS-400) 74Kw
Evidenziare

3150kn Max Cutting Force Gantry Shear

,

800mm Blade Length Scrap Metal Shear

,

3-5t/H Production Rate Horizontal Shear Machine
Lasciate un messaggio
Descrizione di prodotto
WS-315 Horizontal Scrap Metal Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation featuring a roll on/roll off system. Various models are available to meet different production requirements.
Key Applications
Specifically engineered for scrap metal processing operations, providing efficient and cost-effective material handling solutions.
Product Features
  • Horizontal structure allowing manual or automatic feeding with conveyor systems
  • PLC control with push-button operation for enhanced safety and reliability
  • High output capacity for maximum productivity
  • Easy operation with flexible transportation via roll on/roll off system
Technical Specifications
Specification Details
Product Name WS Horizontal Metal Shear
Condition New
Application Scrap metal
Nominal Force 400 Ton
Driven Type Hydraulic
Max. Length To Shear 1600mm
Voltage 21.5 Mpa, Customized
Color Customized
Automatic Grade Automatic
Performance Specifications
Model Max Cutting Force (KN) Blade Length (mm) Shear Height (mm) Production Rate (t/h) Power (KW)
WS-400 4000 1000 300/420 4-7 74
WS-500 5000 1400/1600 300/420 6-9 90
WS-630 6300 1400/1600 300/420 8-15 135
WS-800 8000 1600 420/500 12-18 180
WS-1000 10000 1600/2100 420/500 15-25 225
Commercial Terms
Term Details
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 5 sets /month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
