WS-500 Automatic Gantry Shear with 5000kn Max Cutting Force 1400mm Blade Length and 6-8t/H Production Rate

  • WS-500 Automatic Gantry Shear with 5000kn Max Cutting Force 1400mm Blade Length and 6-8t/H Production Rate
  • WS-500 Automatic Gantry Shear with 5000kn Max Cutting Force 1400mm Blade Length and 6-8t/H Production Rate
Quantità di ordine minimo 1
Prezzo 74000
Dettagli
Modello n. WS-500 Forza di taglio massima 5000kN
Lunghezza lama 1400 mm Tasso di produzione 6-8t/h
Energia 90 kW Forza nominale 400 tonnellate
Tipo guidato Idraulico Lunghezza massima 1600 mm
Voltaggio 21.5MPA Grado automatico Automatico
Altezza del taglio 300/420 mm Capacità produttiva 5 set/mese
Lunghezza lama 1400/1600 mm
Evidenziare

5000kn Max Cutting Force Gantry Shear

,

1400mm Blade Length Scrap Metal Shear

,

6-8t/H Production Rate Automatic Shear Machine
Lasciate un messaggio
Descrizione di prodotto

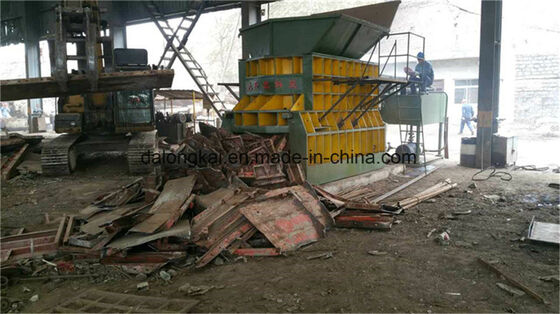

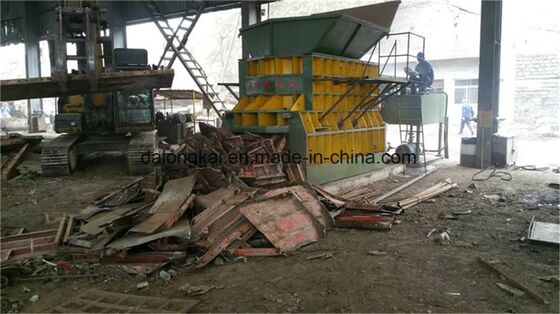

WS-500 Automatic Shear Machine for Scrap Steel
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation via roll on/roll off system. Available in various models to meet different operational requirements.
Key Features
  • Horizontal structure allows for manual or automatic feeding with conveyor
  • PLC control and push-button operation for safe and reliable performance
  • High output capacity for efficient scrap processing
  • Manual belting system (HPM series)
Product Specifications
Product NameWS Horizontal Metal Shear
ConditionNew
ApplicationScrap metal processing
Nominal Force400 Ton
Driven TypeHydraulic
Max. Length To Shear1600mm
Voltage21.5Mpa, Customized
ColorCustomized
Automatic GradeAutomatic
Commercial Terms
Minimum Order Quantity1 Set
PriceNegotiable
Payment Terms30% T/T In Advance
Supply Ability5 sets /month
Delivery TimeAs per requirement
Packaging DetailsSeaworthy packing
After-sales ServiceEngineers available for overseas service
Technical Specifications
Model Max Cutting Force (KN) Blade Length (mm) Shear Height (mm) Production Rate (t/h) Power (KW)
WS-40040001000300/4204-774
WS-50050001400/1600300/4206-990
WS-63063001400/1600300/4208-15135
WS-80080001600420/50012-18180
WS-1000100001600/2100420/50015-25225
